Stainless Steel Grab Bars

Exposed Mounting
SP827Q&H (snap-on)

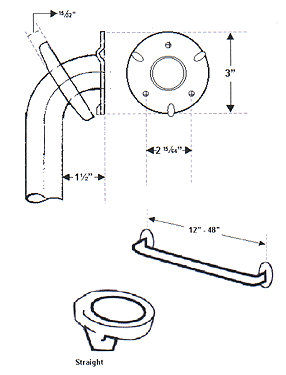

Technical Data






Fabrication

  • Tubing of Type 304 Stainless Steel, and wall
    thickness of 1.2mm (18 gauge).
  • Flange of 11 gauge type 304 Stainless Steel with 3" diameter. Bars through flanges connected by heliarc welding.
  • Snap-Cover of 22 guage type 304 Stainless Steel, 3 1/4" diameter and 15/32" depth.

Meet all ADA Guidelines

11/2" wall clearance, and support weights of more than 900 pounds when bars are properly installed.







For more information or for custom orders, please email us: info@abchardwareinc.com.
